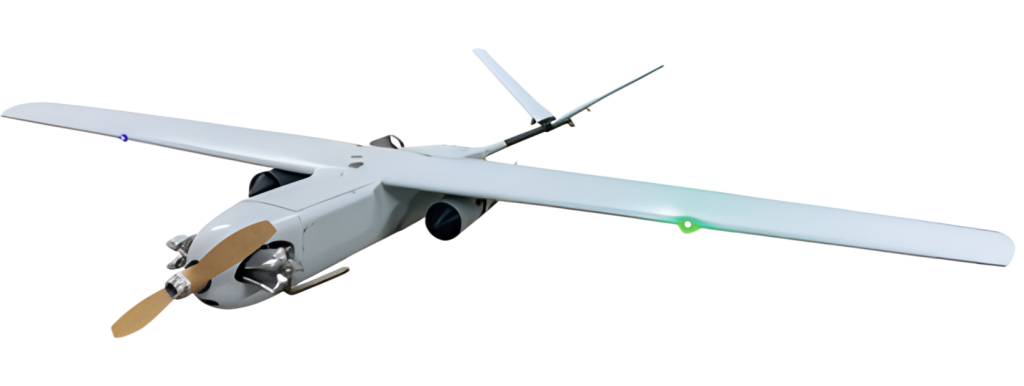

THOR
internal combustion engine
THOR UAV is a multipurpose aerial platform used for transportation, combat and reconnaissance missions, shell-dropping, and air defense testing.
Performance characteristic
Body
Composite,
matrix
production
Empty weight
(without battery)
(without battery)
13 kg
Body
up to 8 kg
Maximum
take-off weight
take-off weight
up to 28 kg
Maximum flight
duration
duration
240 min
Flight
range
range
up to 400 km
Maximum
flight altitude
flight altitude
up to 2000 m
Flight
speed range
speed range
110-150 km/h
«THOR» complex basic configuration (THREE aerial vehicles with an internal combustion engine, ground control system (antenna, control unit, laptop), launcher, transportation box, SPTA kit)
Cruise
air speed
air speed
120-135 km/h
Day vision camera
or day vision camera with thermal imager
or day vision camera with thermal imager
according to specification
Repeater
for FPV
for FPV
according to specification
Deployment time
from travel position
from travel position
15-20 min
Designed to perform the following missions:
– reconnaissance;
– real-time defeating of ground and water targets;
– real-time defeating of ground and water targets;
Restart time
15-20 min
Rollup time
5 min

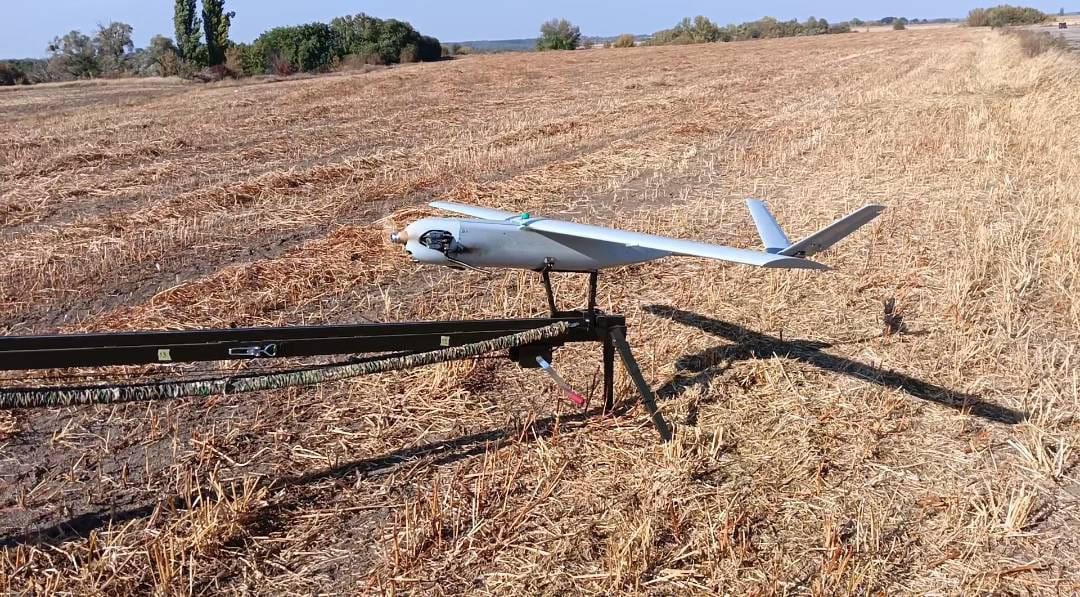

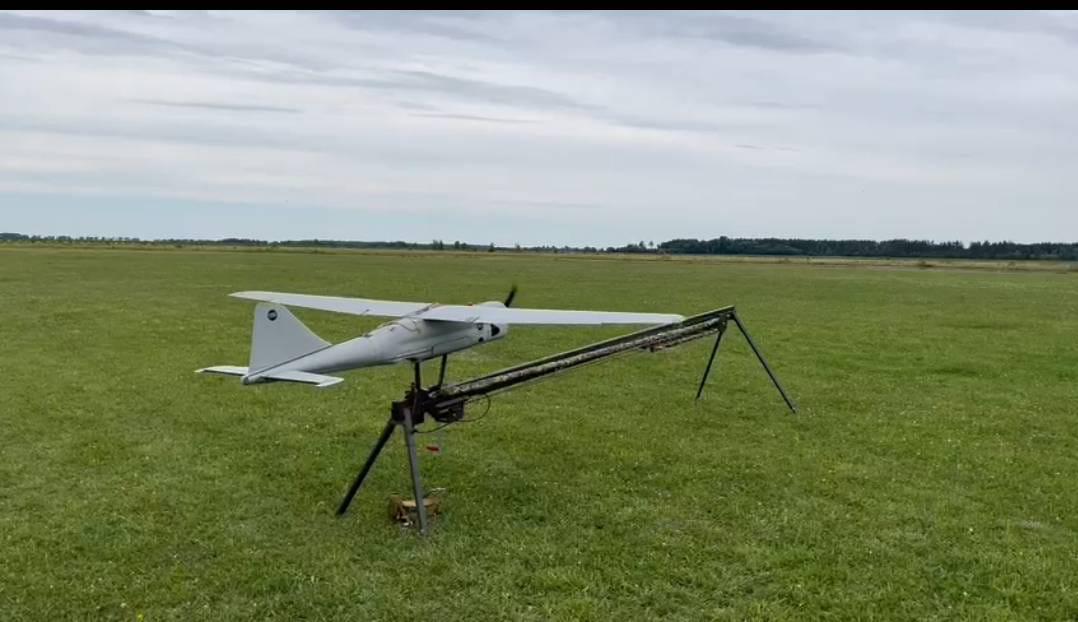

Take-off type
Off the launcher
Landing
plane-type with
short runway roll

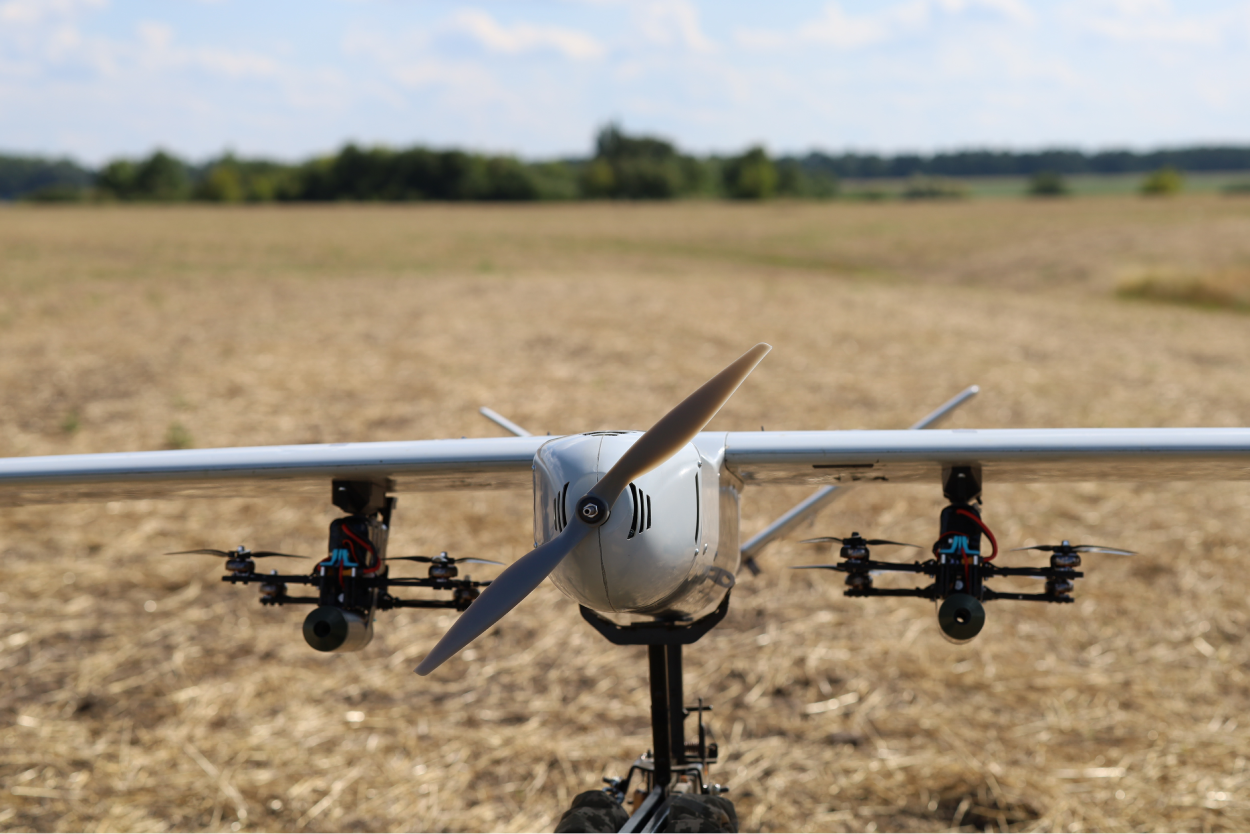

– interceptor of reconnaissance drones (carries 2 copters, using the copter drop method and control by an external drone operator, defeats an enemy`s UAVs with our copter).
Operators
2-3
Internal
combustion engine
combustion engine
